2-Channel Isolated CAN FD Expansion HAT for All Raspberry Pi, Support CAN2.0 and CAN FD Protocols,with MCP2518FD CAN Controller + MCP2562FD CAN Transceiver Onboard Multi Protection Circuits

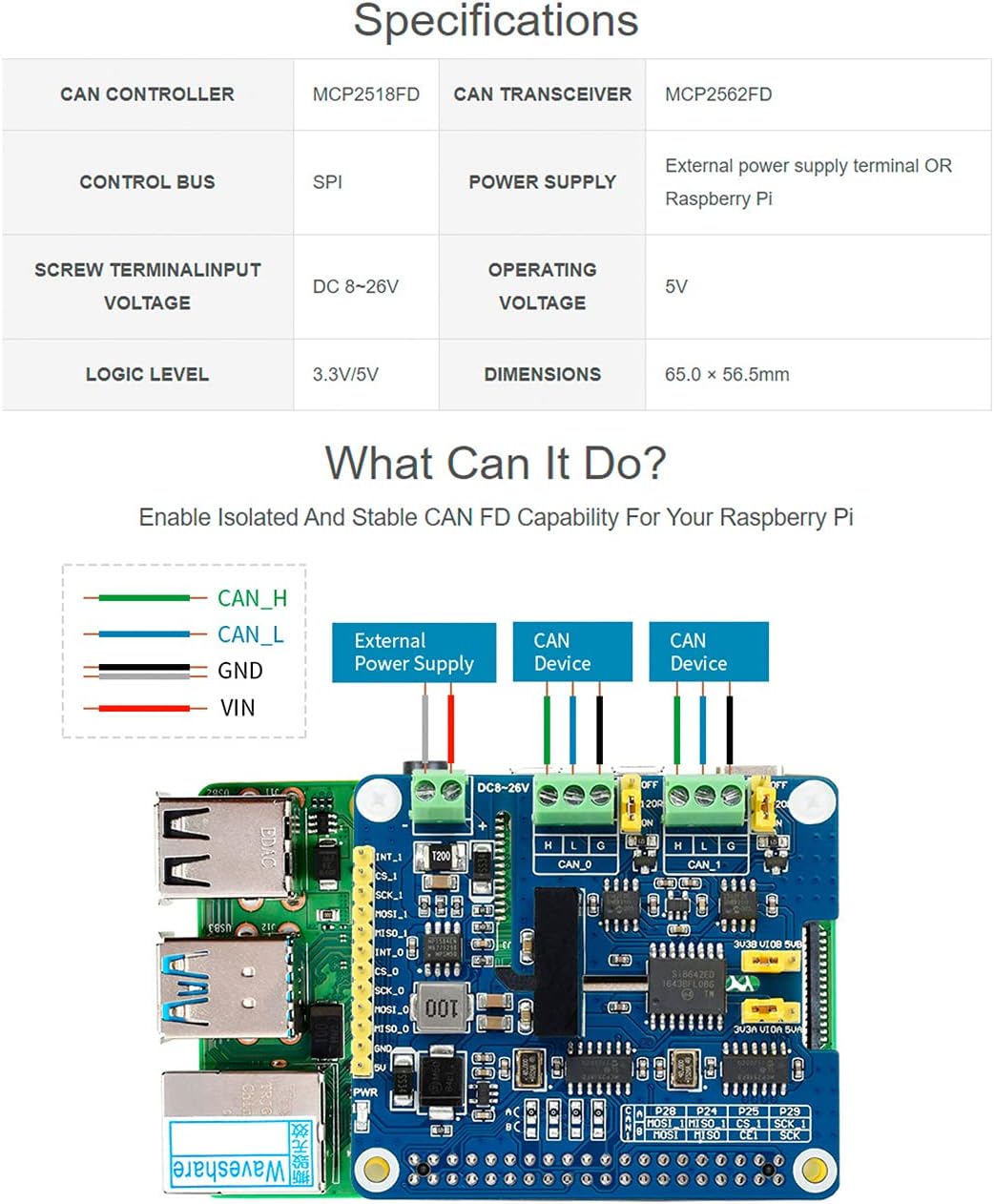

Overview This is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate), the speed is higher than the traditional 1Mbps of CAN2.0, features multi onboard protection circuits, high anti-interference capability, and stable operation. It suits for fields such as automotive devices or industrial automation. Onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports both traditional CAN2.0 and CAN FD protocols Breakout SPI control pins, for connecting with host control boards like STM32/Arduino Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability Onboard lightningproof, ESD protection, short circuit protection, more safe communication Onboard voltage translator, select 3.3V/5V operating voltage by jumper Onboard 120Ω terminal resistor, configured by jumper Comes with development resources and manual (examples for Raspberry Pi/Arduino) Specifications CAN controller: MCP2518FD CAN transceiver: MCP2562FD Communication interface: SPI (two channels independent SPI by default, swith to one channel SPI by soldering) Power supply: external power input terminal, or Raspberry Pi Power input terminal voltage: DC 8~26V Operating voltage: 5V Logic level: 3.3V/5V Dimensions: 65.0 x 56.5 mm Package Content 2-CH CAN FD HAT x1 2x20PIN female header x1 Standoffs pack (2pcs) x1

• 2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi,with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Support both traditional CAN2.0 and CAN FD protocols, higher data throughput, high anti-interference capability, stable operation.Support 2-Channel CAN, with MCP2518FD CAN controller + MCP2562FD CAN transceiver
• Onboard protection circuits,including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.
• Electrical isolation circuitry safe & stable,SM24CANB TVS diode, ESD protection, transient peak voltage protection.short circuit protection, more safe communication
• Flexible and handy jumpers.easily select 3.3V / 5V operating voltage, or enable/disable 120Ω terminal resistor, configured by jumper. Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability.
