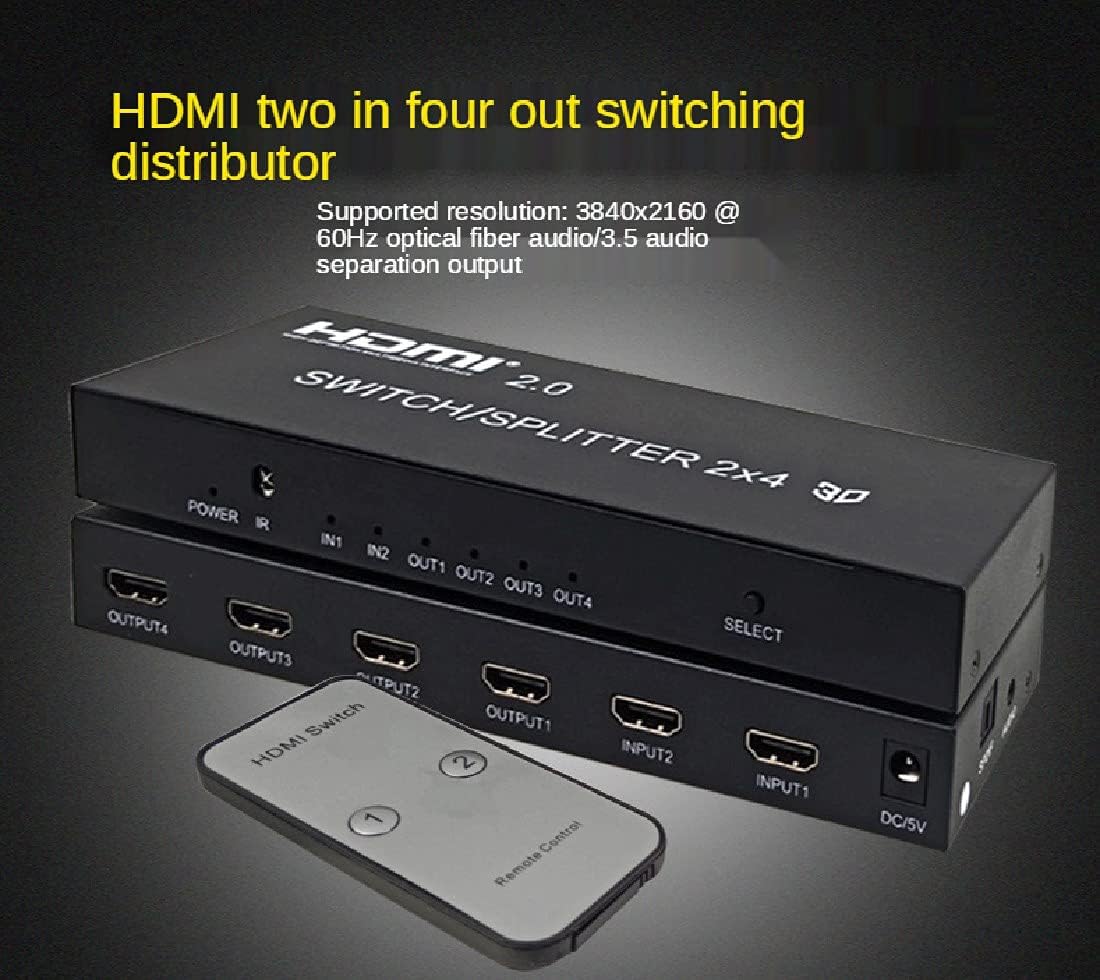

2X4 HDMI Switch Splitter，4K HDMI 2.0 Switcher 2X4 Splitter with HDMI 2.0 Audio Extractor Splitter Functions HDMI 2 in 4 Out Switch Splitter

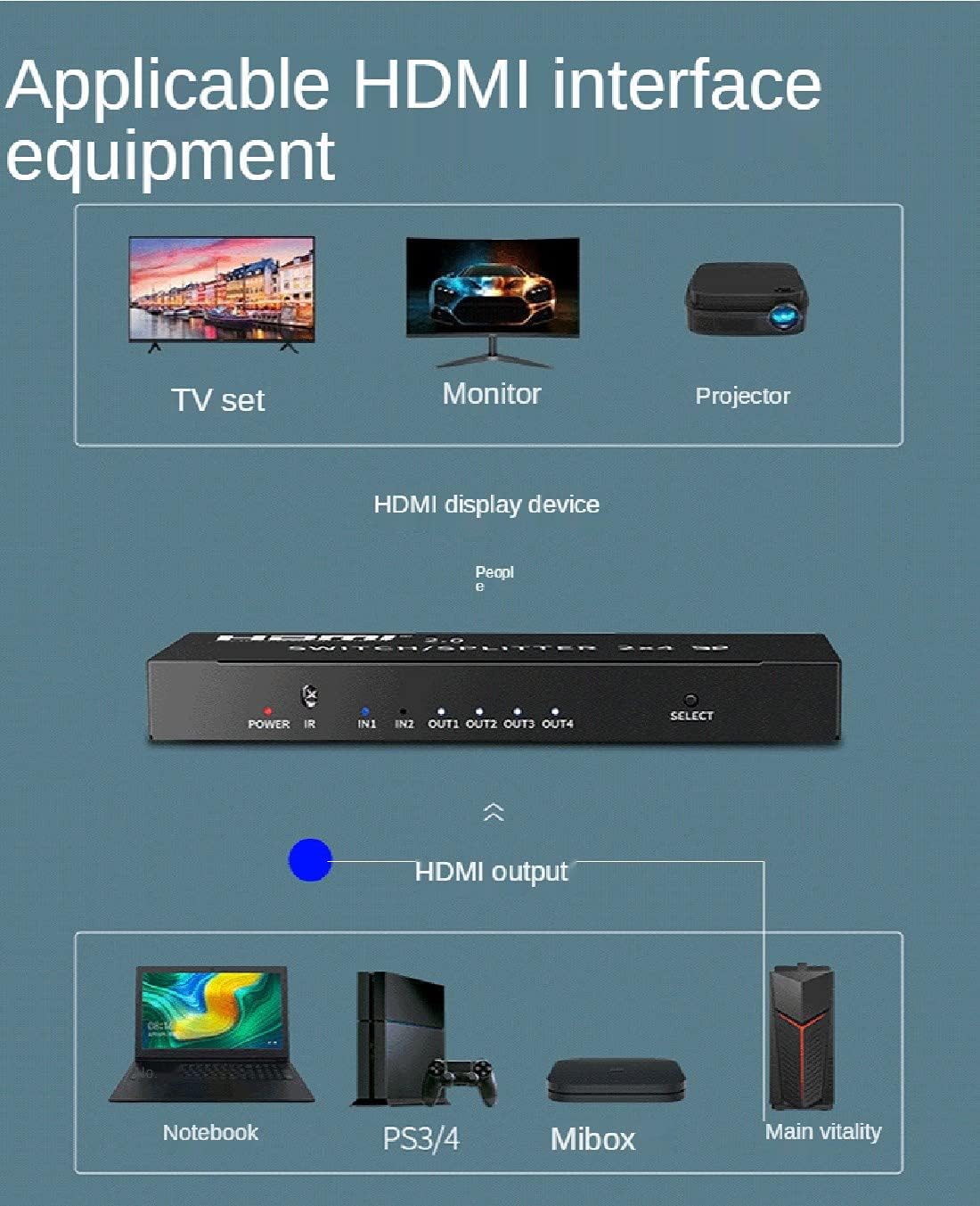

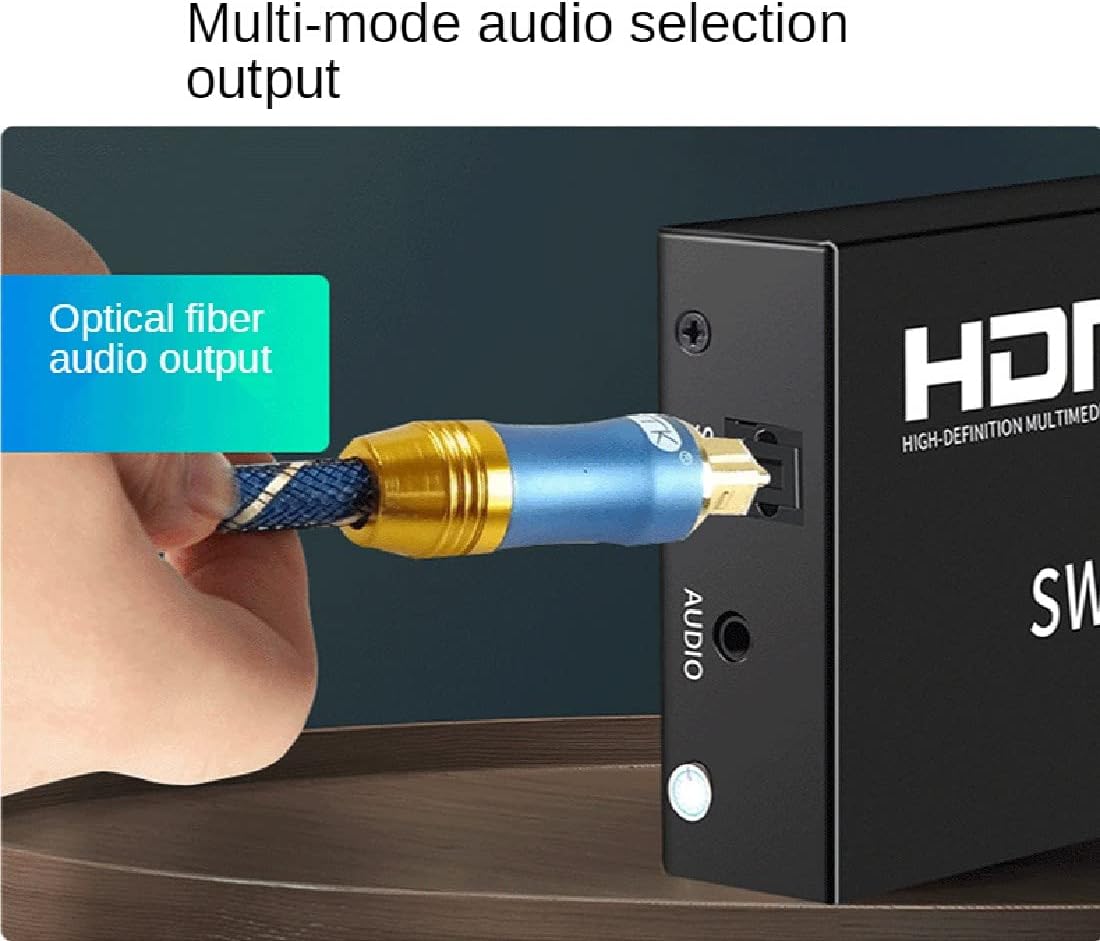

1)the item listed above can not work as HDMI matrix, all outputs can only display the same video source. Introduction : This 2 x 4 HDMI 2.0 switch splitter can connect 2 hd signal sources to 4 hd display terminals. It can easily split the 2 hd signals generated by the 2 hd signal sources to 4 hd displayers or projectors.In addition, when connect it to a HDMI output cable, it can amplify the HDMI singal. The 2 signal sources can be switched freely.The HDMI spltter can support all hd multichannel audio formats including 720p, 1080i, 1080p,2160p@30Hz,2160p@60Hz. It also supports the3.5 mm audio output and SPDIF audio output. Features&specifications: HDMI version: HDMI2.0a (downward compatible) HDCP version: HDCP 2.2 (downward compatible) Resolution: up to 3840x2160/60Hz (RGB/YUV 4:4:4) (downward compatible) Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD Support video format: 8/10/12 color depth Maximum bandwidth transmission: 600MHz Maximum transmission rate: 6Gbps HDMI input port: 2 HDMI output port: 4 Audio interface: Optical SPDIF and 3.5mm jack Input cable length: 1080P ≤ 20M; 4k@30Hz ≤ 15M, 4k@60Hz ≤ 10M AWG26 HDMI standard cable Output cable length: 1080P ≤ 20M; 4k@30Hz ≤ 15M, 4k@60Hz ≤ 10M AWG26 HDMI standard cable.

• 1. The HDMI2.0 version supports a resolution of 3840X21 60@60Hz.
• 2. Support audio format (DTS-HD-DOLBY-TRUEHD DTS- DOLBY-AC3 DSD) Press the "Select" button of the switcher for about 5 seconds to switch between 5.1-2.1 channels.
• 3. Long-distance 4K/60HZ transmission can reach 10 meters, and 1080P can reach 20 meters.
• 4. Downscaling (can output 4K and 1080p at the same time).
• 5. Plug and play, simple and convenient.
