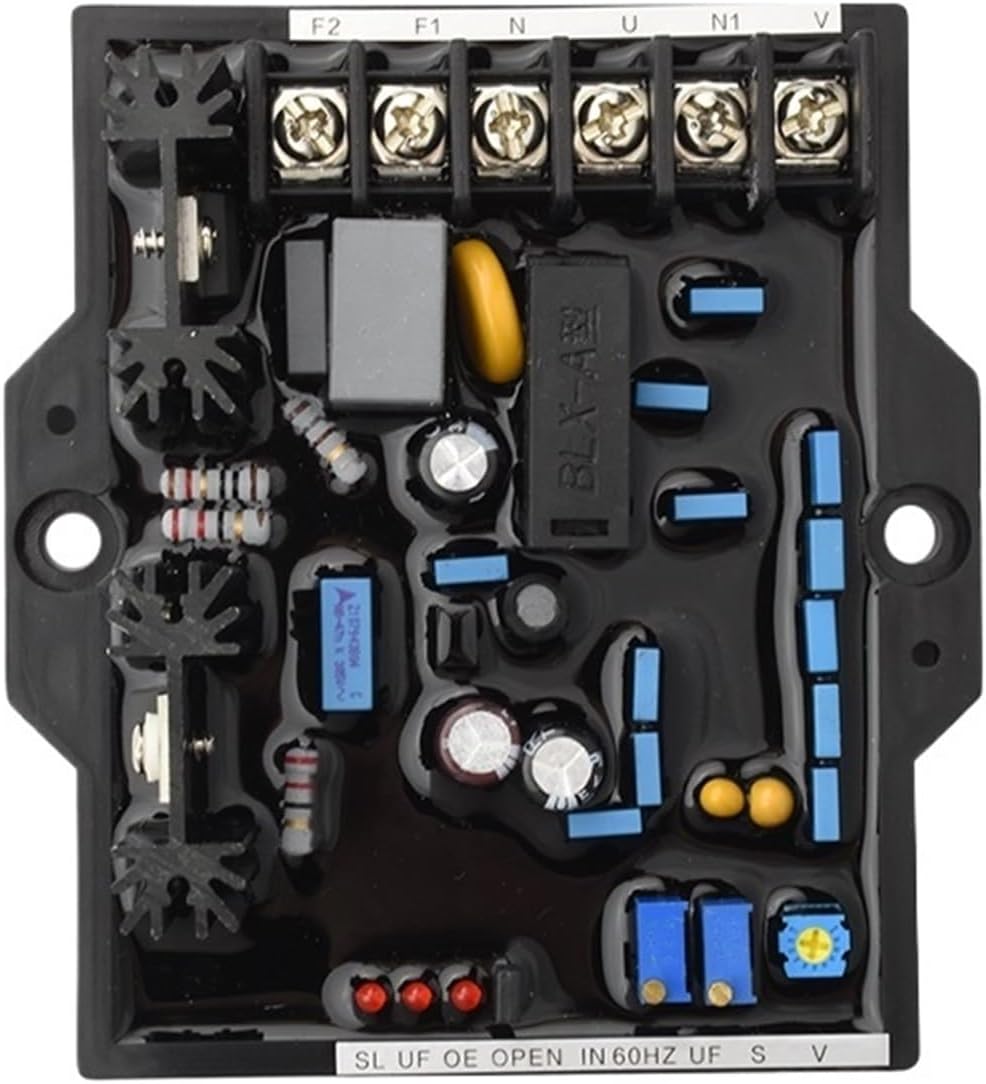

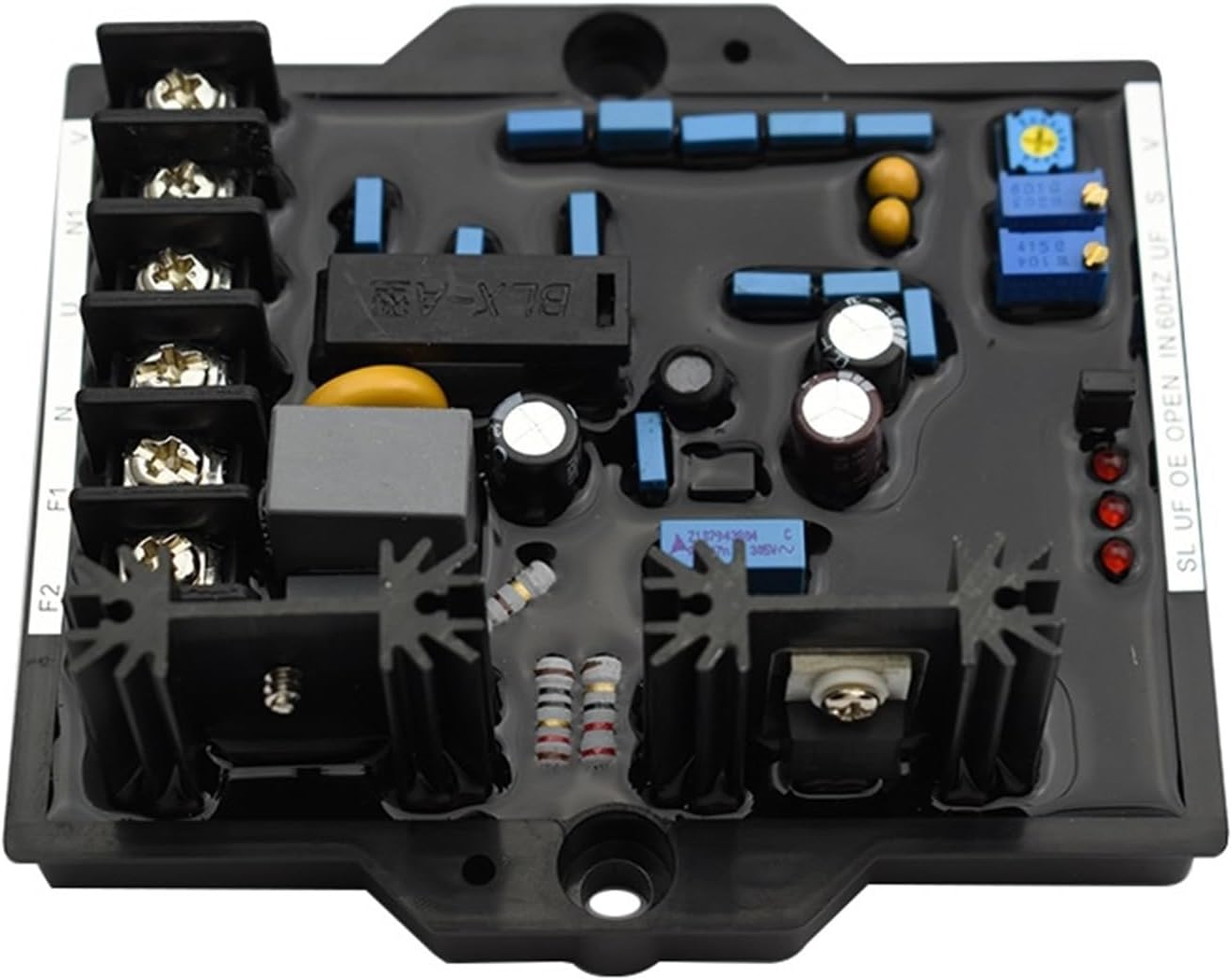

R120 Automatic Voltage Regulator Voltage Stabilizer Replacement Auto Voltage Regulator Diesel Genset Parts

Voltage RegulatorsDescription:The Automatic voltage regulator (Automatic Voltage Regulator) is a compact, high performance encapsulated unit. The Automatic Voltage Regulator incorporates latest technology high degree of miniaturization when applied to 3Ø and 1Ø AC brushless generator within its input and output limits, the unit offers excellent reliability. The Automatic Voltage Regulator supplies DC excitation to the the terminal voltage within close limits from NO-LOAD to FULL LOAD.The recovery time on sudden loading is likely to be around 0.5 sec. to recover 98% of the rated voltage. Please note that the transient performance like voltage dip and recovery time are mainly decided by the generator and exciter design parameters. Best performance from the regulator can be obtained by keeping full load excitation around 60V DC.Technical specification: SENSING INPUT1) Voltage :240 V AC ±20% for 1 phase, 415 V AC ±20% for 3 phase, 2 line sensing Automatic Voltage Regulator Senses true average of the line to line waveform. Use Resistor (SMD) network for trouble free sensing & control of sensed voltage regulation2) Input power- Voltage: 240V AC r m s ± 20%- Frequency: 50/60 Hz3) Output power- Voltage: 95 V DC at 240V AC Input- Current:4 Amps DC Continuous6 Amps for 30sec.(when allowed by field resistace)
